The UH-60 Black Hawk is a four-bladed, twin-engine, medium-lift utility helicopter manufactured by Sikorsky Aircraft. Sikorsky submitted the S-70 design for the United States Army's Utility Tactical Transport Aircraft System (UTTAS) competition in 1972. The Army designated the prototype as the YUH-60A and selected the Black Hawk as the winner of the program in 1976, after a fly-off competition with the Boeing Vertol YUH-61. The UH-60A entered service with the Army in 1979, to replace the UH-1 Iroquois as the Army's tactical transport helicopter.

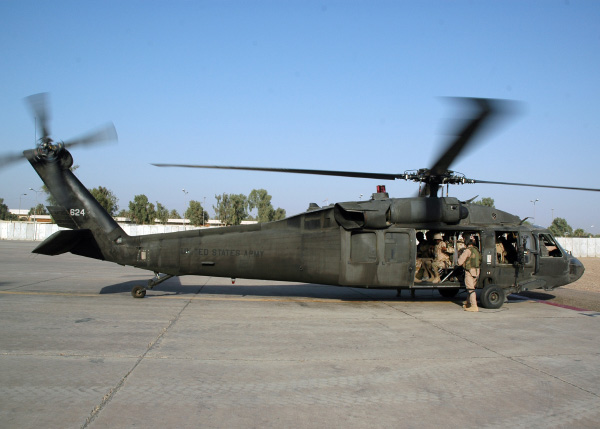

Sikorsky UH-60 Black Hawk
Rotor span: 60 ft 0 in (18.30 m)
Length: 98 ft 10 in (30.10 m)
Height: 18 ft 11 in (5.70 m)
Empty: 23,400 lb (10,185 kg)
Max Gross: 50,000 lb (22,680 kg)
Maximum Speed: 196 mph (315 km/h)
Cruise Speed: 137 mph (220 km/h)
Inclined Climb: 1,522 ft/min (606 m/min)
Service Ceiling: 18,500 ft (5,640 m)
Range: 450 miles (741 km)
Two Lycoming T55-GA-712 turboshaft, 3,750 hp (2,796 kW).
M240 7.62 mm (0.308 in) machine gun.
